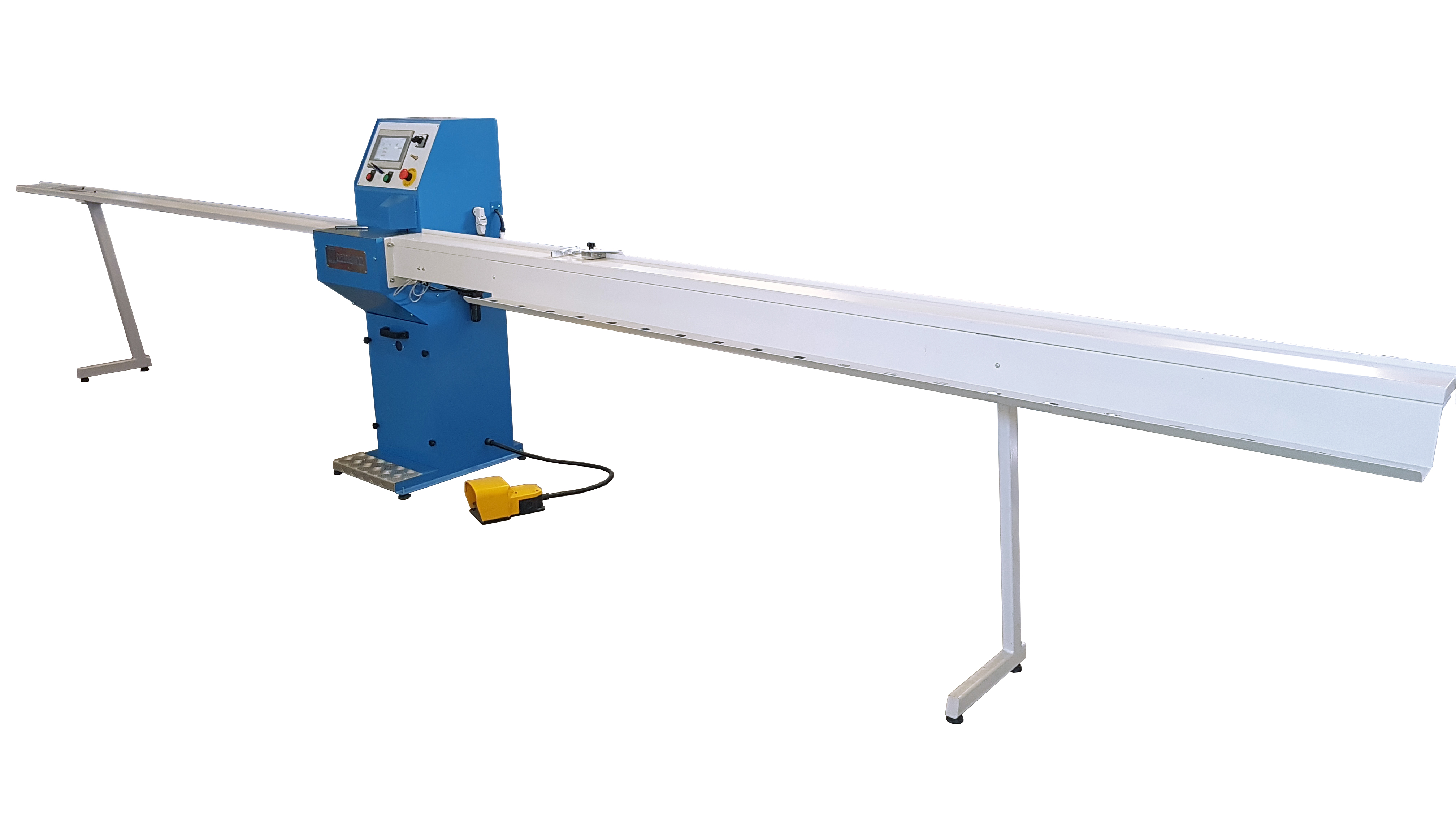

Cutting frame machine model N and S

Machine for the cutting of the frames for the insulating glass production.

Description

These two models of profile cutting machines have been designed to make the cutting of frames for IG glass production easy, fast and secure.

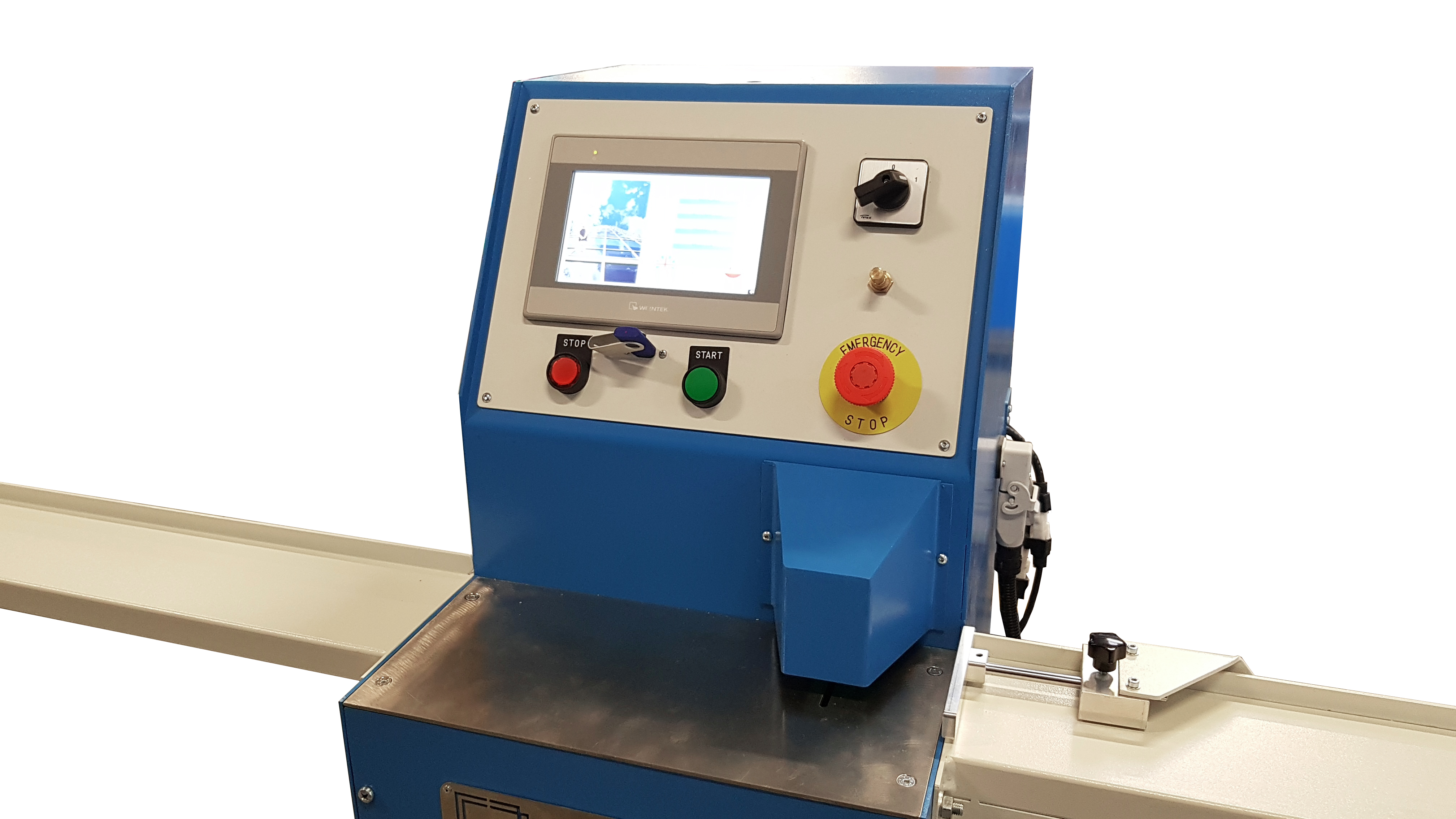

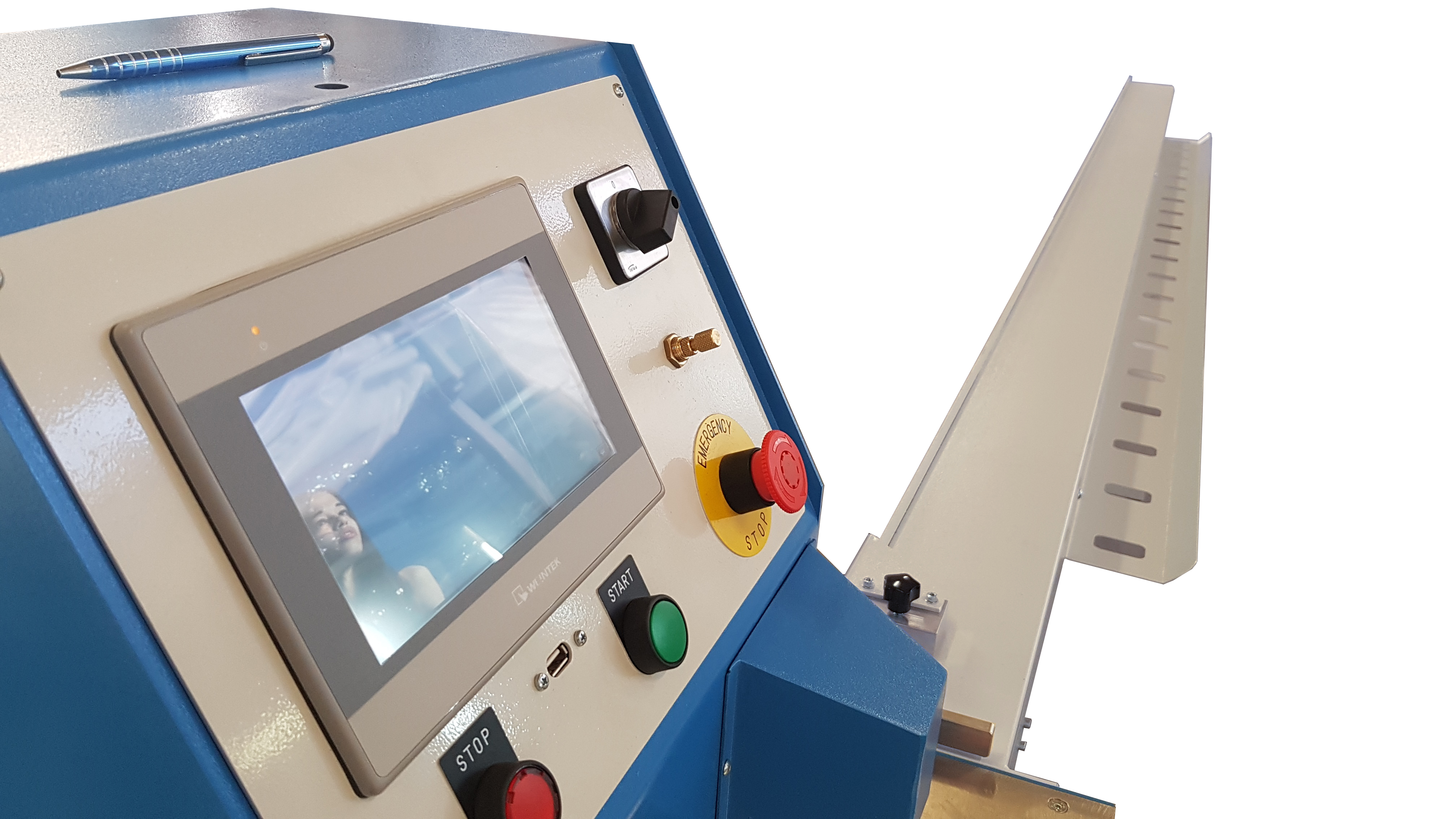

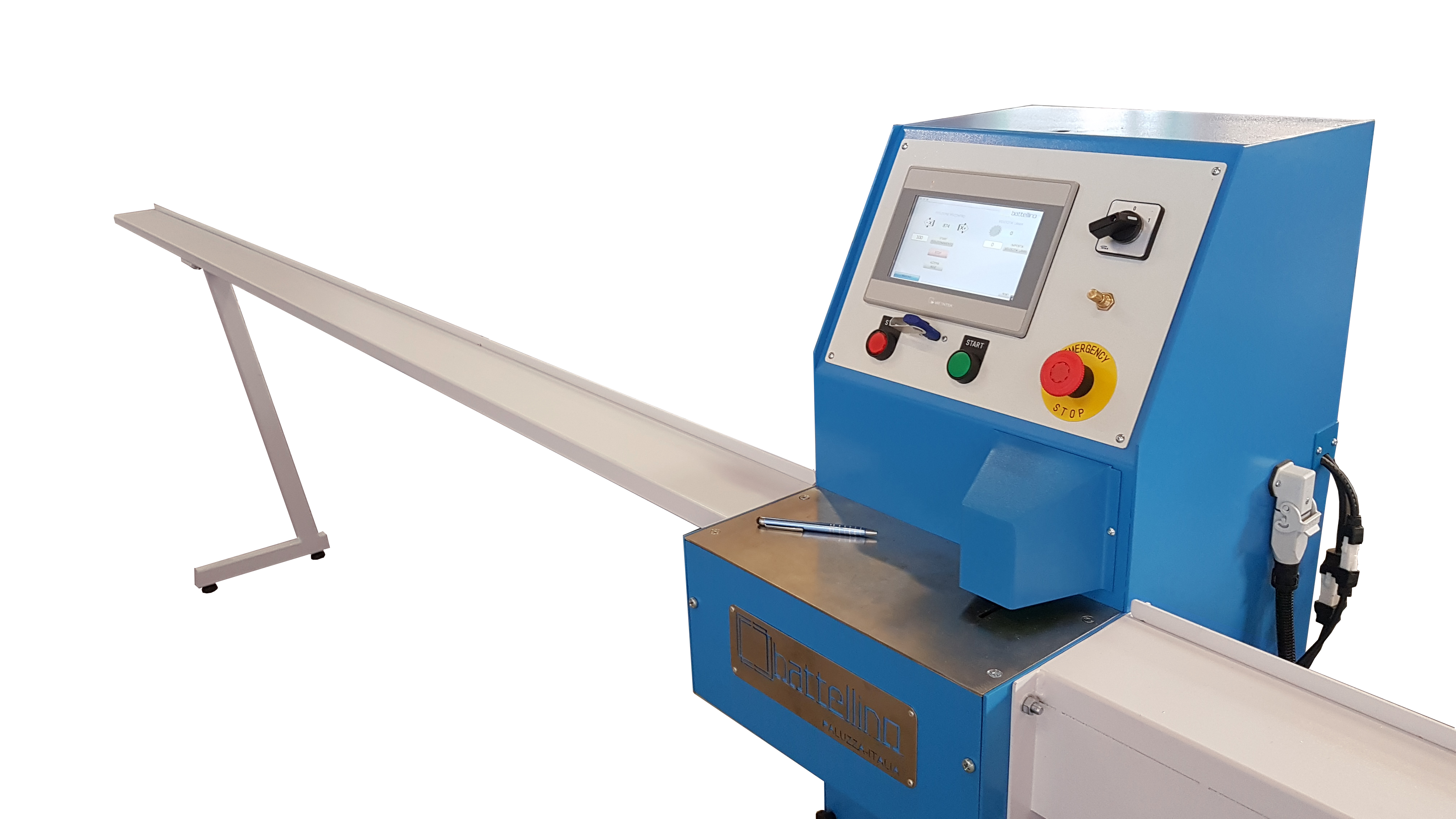

In both models all controls are on frontal panel, for the N model a handy handwheel and a viewer help the setting of the cutting size, while in the Model S the wide multilingual PLC touch screen and the brushless motor adjust the measurements.

Equipped with an nverter for the rotating speed adjustments of the blade and a recipe software to choose the selected frame, our S model cutter is the ideal tool for glassware with more complex requirements, while the small N, easy to use and convenient is the right choice for the small businesses.



TECHNICAL FEATURES

Dimensions:



Width

6350 mm

High

1260mm

Length

360mm

Weight

100 Kg

Working surface

890mm

Arms dimension

3000mm

Blade dimensions

Diam 200  z200

Pneumatic pressure

0

Measurement accuracy

+/- 0,1 mm

Compressed air required

/

Installed power

1 Kw
